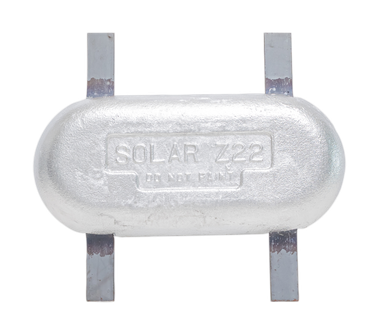

Z-22 Strap Anode
Large oval strap anode for commercial marine applications.
22 lb
Zinc anodes
MARINE ZINC ANODES
Made in Canada
Commercial traps
Marine docks
Marine boats
Specification-driven ordering
Weights, dimensions, and strap details are shown so buyers can identify the right zinc more quickly.
Commercial marine applications
Zinc anodes for commercial traps, docks, boats, and working equipment.
Confirm before ordering
Use the table as the starting point. Send markings or photos if you need help matching a replacement.

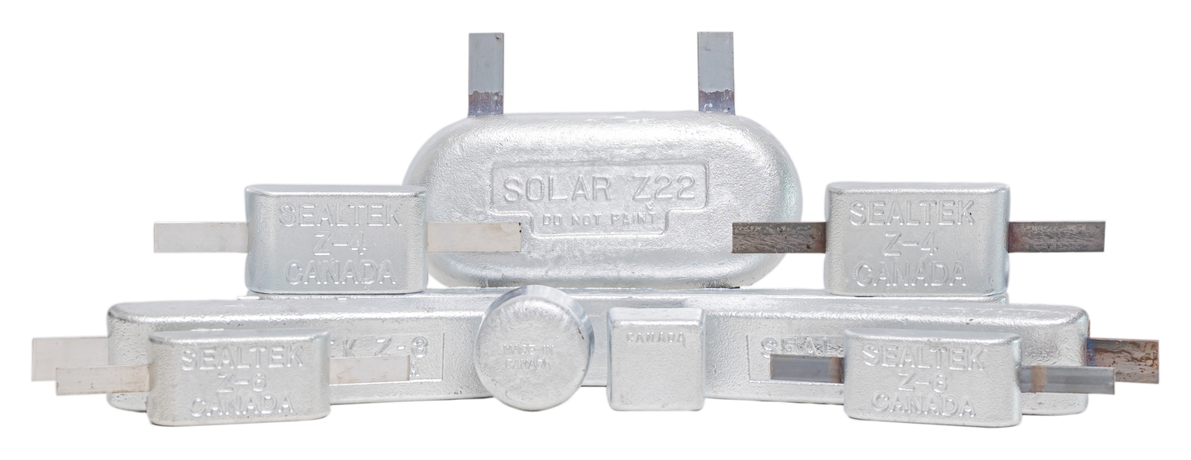

Specification lineup
Zinc anode models.
Strap anodes and the commercial spin-on round anode are shown below with advertised weights.

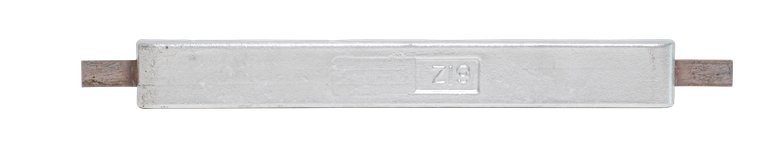

Z-19 Bar Strap Anode
Long bar strap anode for straightforward marine replacement.
22 lb

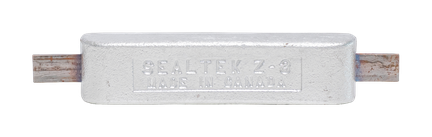

Z-3 Strap Anode
Mid-size strap anode for commercial traps and marine equipment.
10 lb

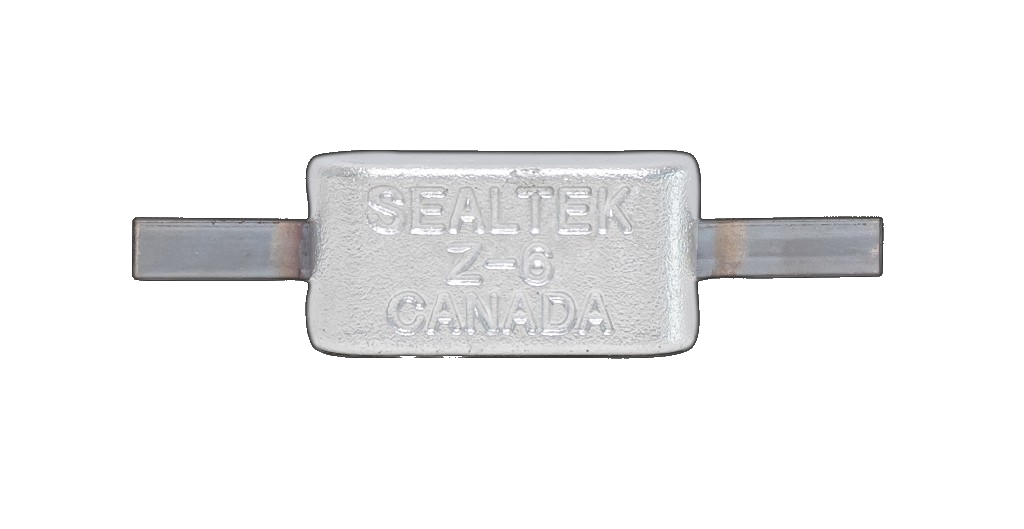

Z-6 Strap Anode
Compact rectangular strap anode for smaller marine applications.
3 lb

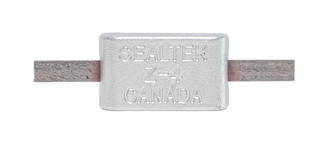

Z-4 Strap Anode
Smaller rectangular strap anode for compact applications.
5 lb
4.5 lb Round Anode
Round spin-on anode — Ladner Traps' best-selling commercial zinc option.
4.5 lb
Need help matching the right zinc?
Ask About Zinc Anodes
Send the anode marking, dimensions, application, or replacement photo. We can help confirm the right model before quoting.
Specification sheet
Zinc dimensions and weights.
Advertised weights and dimensions for zinc ordering. See the product cards above for a quick overview.
| Anode | Weight (lbs) | Width (in) | Length (in) | Thickness (in) | Strap Length (in) |
|---|---|---|---|---|---|
| Z-6 | 3 | 2.5 | 5 | 1.25 | 9.5 |
| Z-4 | 5 | 3.5 | 5.75 | 1 | 12 |
| Z-3 | 10 | 3 | 12 | 1.25 | 16 |
| Z-22 | 22 | 6.5 | 13.75 | 1.25 | 12 |
| Z-19 | 22 | 3 | 24.75 | 1.25 | 30 |
| Round | 4.5 | — | — | 2 | — |
